Core2QuadOSL.4mMikroBits Celoica 8101 Core 2 Quad (RoS Level 4)

(MBCEL-C2Q-L4)

MikroBits Celoica solusi untuk kebutuhan router rackmount berkapasitas besar, dengan processor Intel® Core™2 Quad Processor Q9400 (6M Cache, 2.66 GHz, 1333 MHz FSB), RAM 2 GB, dan 10 buah port gigabit ethernet. Sudah termasuk MikroTik RouterOS level 4.

Core2QuadOSL.5mMikroBits Celoica 8101 Core 2 Quad (RoS Level 5)

(MBCEL-C2Q-L5)

MikroBits Celoica solusi untuk kebutuhan router rackmount berkapasitas besar, dengan processor Intel® Core™2 Quad Processor Q9400 (6M Cache, 2.66 GHz, 1333 MHz FSB), RAM 2 GB, dan 10 buah port gigabit ethernet. Sudah termasuk MikroTik RouterOS level 5.

Core2QuadOSL.6mMikroBits Celoica 8101 Core 2 Quad (RoS Level 6)

(MBCEL-C2Q-L6)

MikroBits Celoica solusi untuk kebutuhan router rackmount berkapasitas besar, dengan processor Intel® Core™2 Quad Processor Q9400 (6M Cache, 2.66 GHz, 1333 MHz FSB), RAM 2 GB, dan 10 buah port gigabit ethernet. Sudah termasuk MikroTik RouterOS level 6.
Spesifikasi Produk:
  • Processor : Intel® Core™2 Quad Processor Q9400 (6M Cache, 2.66 GHz, 1333 MHz FSB)
  • RAM : 2 x 667MHz DDR2 Slots, 2 x 1024MB Industrial Grade RAM (2GB RAM) installed on the base Model
  • Boot loader : Award 16 Mbit PnP Flash BIOS with function of BIOS redirected to COM port
  • HDD Interface : 2x SATA, 1x CF Slots with True IDE IBM MicroDrive Support
  • Compact Flash : 1 GB Industrial Grade Compact Flash for RouterOS
  • HDD : 250GB SATA 2.5" HDD
  • Ethernet : 10 x 10/100/1000Mbps Gigabit Ethernet (Intel® 82574L)

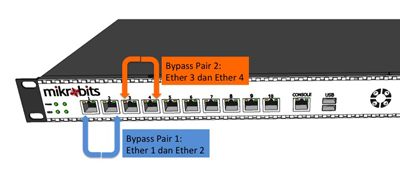

  • Lan by-pass : 2 groups, LAN1-LAN2, LAN3-LAN4
  • Expansion Slots : 1 x 32bit/33MHz MiniPCI/1 x PCIe x8 slot
  • Serial port : 1 console, RJ type

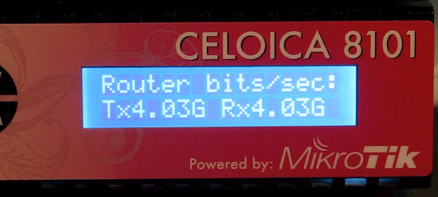

  • LCDs : 1x back lit 2character x16 character LCD Display
  • LEDs : Power and HDD LED
  • Speaker : Mini PC - Speaker
  • Power : IEC C13 Power Cord, input power: 100VAC-250VAC 50Hz- 60Hz (International PSU)
  • Fan : 3x Redundant CPU/Power Supply /Chassis Fans,
  • Dimensions : 44 mm (1.73") (H) x 427.8 mm (16.93") (W) x 392 mm (15.43") (D)
  • Operating Temperature : 0°C ~ +45°C (32°F ~ 113°F)
  • Storage Temperature : -20°C ~ +70°C (-4°F ~ +158°F)
  • Humidity : 10% ~ 95% RH, non-condensing
  • Power Supply : 270W ATX PSU
  • Operating System : MikroTik Router OS v5

Test Type Aggregate Result
TCP Routed 7.9 Gb/sec
Contrack On 2.000K Packet/sec

Bypass Function - Aktif secara otomatis jika terjadi fail terhadap system (OS fail / Power fail).
